Channel cutting
Introducing Our State-of-the-Art Concrete Floor Shaver
We’ve recently added a top-of-the-line, heavy-duty electric drive concrete floor shaver to our arsenal of concrete polishing equipment. Known by various names—concrete shavers, planers, milling machines, scarifiers, or surface planers—this advanced tool allows us to tackle even the toughest surface preparation tasks with unmatched precision and efficiency.
CONCRETE PLANING
Heavy-Duty, Dust-Free Concrete Floor Planer
Our heavy-duty electric drive concrete floor planer offers a dust-free solution for precision channel cutting. When paired with our Husqvarna HTC-D60, dust is efficiently collected and bagged for easy disposal, thanks to a robust 100mm dust hose optimized for superior suction performance.
Key features include:
- Dust-Free Operation: Ensures a cleaner, healthier work environment.
- Low Noise: Operating at just 90 decibels, it promotes a more pleasant atmosphere for other trades on-site.
- Clean Cuts: Delivers precise, smooth cuts every time.
- Lightweight Design: Easy to handle and maneuver.
- Low Vibration: Reduces operator fatigue, allowing for longer, more comfortable use.
The Process
Diamond cassette blades give a smooth, even cut leaving a clean channel. It can cut to 30mm deep and 335mm wide – extra width can be gained by more passes. It can cut 60LM/hour – 20M2.
Low weight of 495 kilos allows for easy transport and movement around
construction sites. The latest dust extraction technology surrounds the drum housing helping to lower the vibration levels.

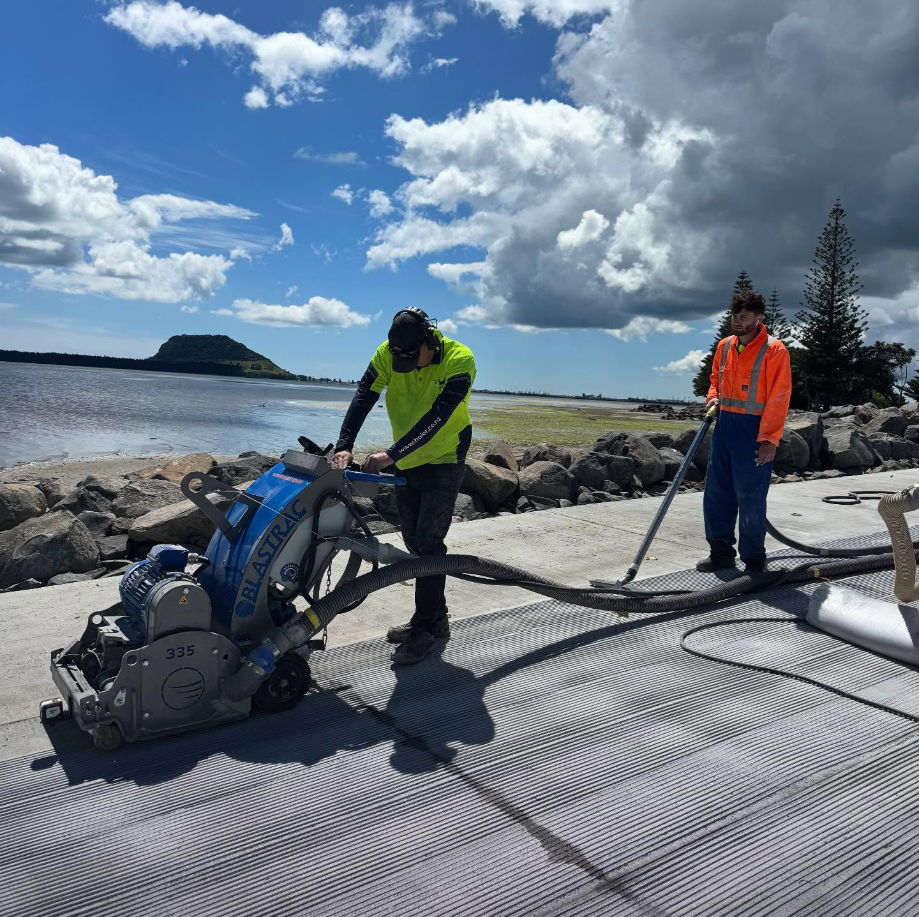

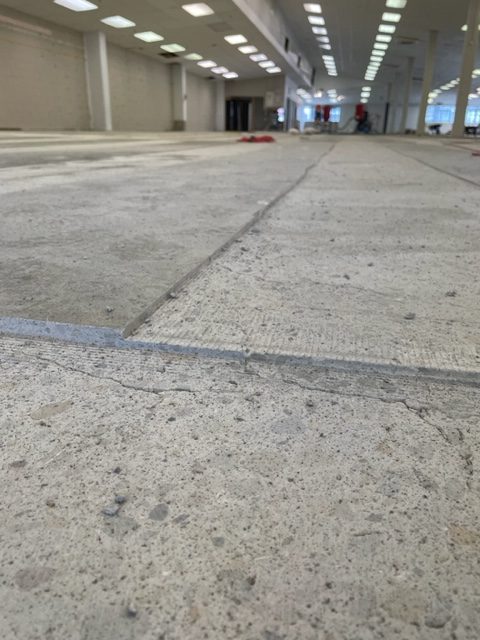

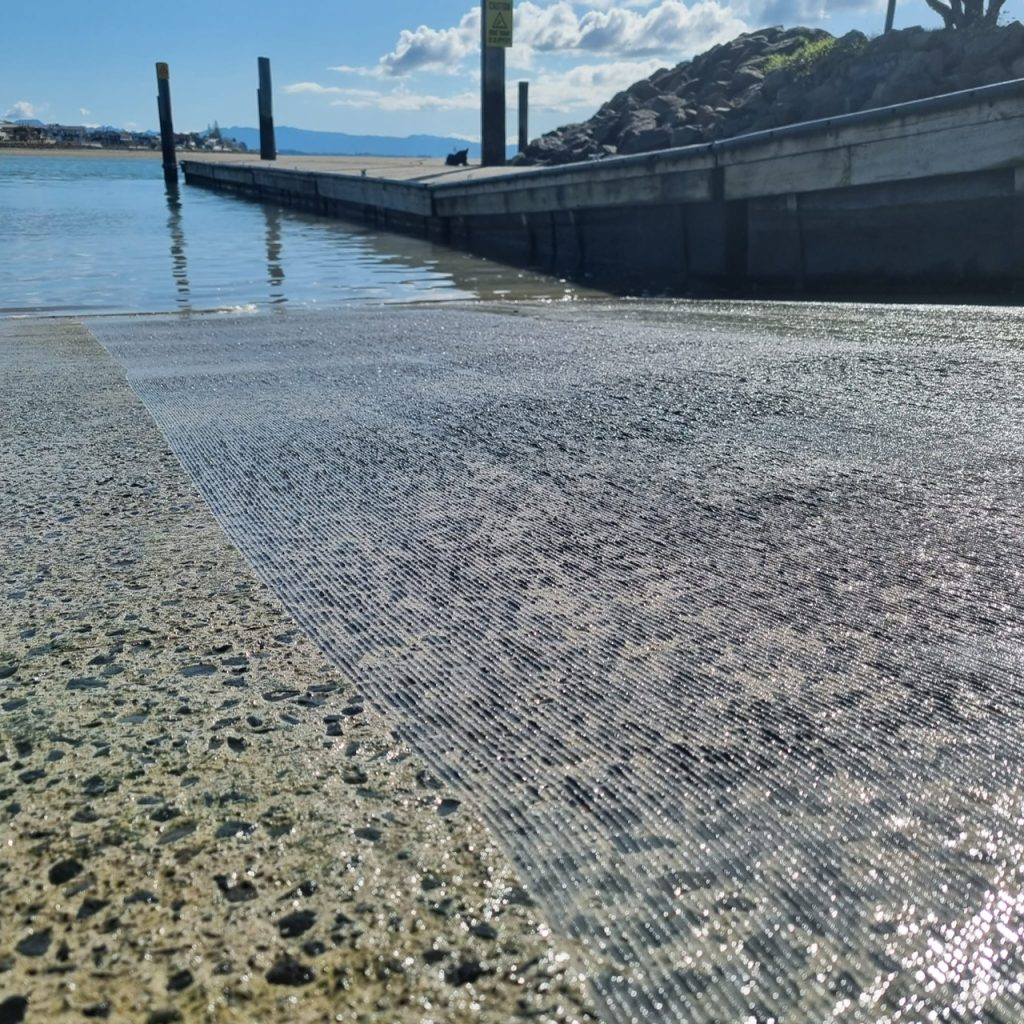

The images below show some of our recent work – concrete texturing – groove cutting – for slip resistance at a Tauranga boat ramp, and some images of seismic strengthening work at Bunnings Warehouse, Wellington, for BBR Contech showing channels cut to run carbon fiber reinforcing at 2 depths – 6mm and 15mm
Applications
- Non-slip cuts for cow sheds
- Adding texture and architectural patterns to pool surrounds
- Boat ramp resurfacing

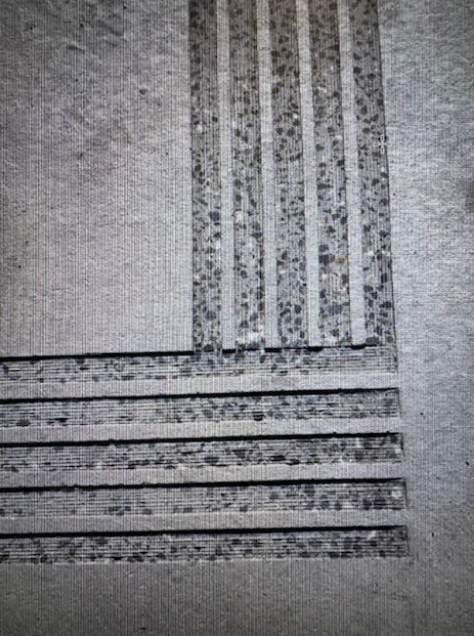

- Decorative channels in concrete walls
- Traffic island edge shaving
- Concrete edge re-contouring
- Height adjustment to road speed humps

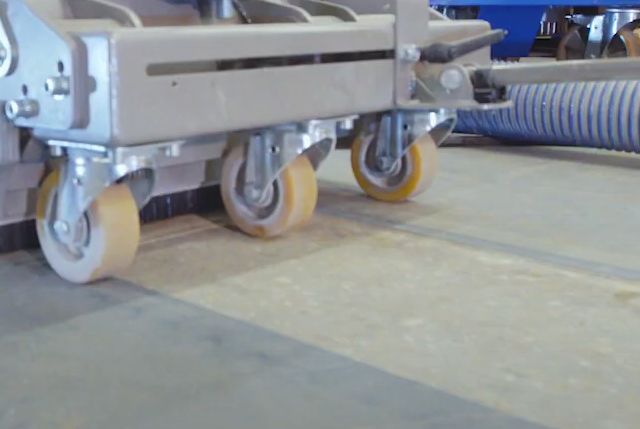

- Seismic strengthening channels
We can cut single channels at your preferred width or multiple channels in a single pass, quickly and cleanly. You can read more about it in our blog posts.
